W2ENY HC-HiFi Element

W2ENY HiFi MIC ELEMENT My custom design replaces Heil's HC-4 or HC-5 element

*** THE HC-4 and HC-5 ELEMENT ARE NO LONGER AVAILABLE FROM HEIL*** I've been experimenting with MANY headsets over the last year, I had previously used a stock Heil headset til now. This element far exceeds mic specs for optimum use with todays radio technology.

Aside from the other headsets I would rather op with, I designed an application for a direct solder in replacement that brings Hi-Fi audio and new life to my old Heil headset.

Upgrade your old contest headset mic and get good audio reports!!!

Features great sound with full range audio, and I've been getting nothing but excellent 'ON AIR' audio reports ("Sounds just like you, Bob!"). It's such a great performer (and such a great deal) that I decided to make it available to the ham community.

50 Hz - 16 kHz wide range has Natural Sound - No peak at midrange

Finally, a way to get rid of that "clothes-pin-on-your-nose" contest headset sound at a fraction of the cost of inferior "name brand celebrity" units!

The "W2ENY HC-HiFi Clear Speech Element" comes complete with instructions.

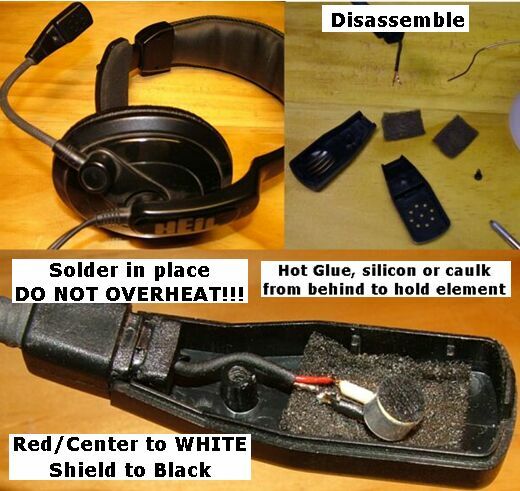

The Headset shown is for install illustration only.

This is an FET amplified electret element, you may have to mod your Heil adapter cable to pass DC to the new element.
Icom - Remove pin 1 series cap and solder direct
Yaesu - Add supplied resistor from pin 2 to center conductor
Kenwood - Add supplied resistor from pin 5 to center conductor
TenTec - Add supplied resistor from pin 4 to pin 1

Bias r esistor is included!!!

Full instructions are online here!

CLICK HERE for an over the air test recording!

$20 complete with instructions
plus $4 shipping

Send check (US Only) or money order in US$ to:

Robert Langston
286 Hudson Street
Cornwall-on-Hudson, N.Y. 12520
U.S.A.
